6000 Deep Cycle 48V 51.2V 50Ah 100Ah 200Ah 300Ah Smart BMS Home Energy Storage Lifepo4 Battery 51.2v 200ah

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Nominal Voltage : 51.2V

Weight : 85kg

Warranty : 5 Years

Cycle life : 6000 Times

Size : 585*480*250mm

Contact Now

Product Description

6000 Deep Cycle 48V 51.2V 50Ah 100Ah 200Ah 300Ah Smart BMS Home Energy Storage Lifepo4 Battery 51.2v 200ah

Model No	YY12100	YY12100	YY24100	YY24200	YY48100
Batteries materials	Lithium iron phosphate
Series parallel mode	4S1P	4S1P	8S1P	8S2P	15S1P
Nominal voltage	12.8V	12.8V	25.6V	25.6V	48v
Nominal capacity	100Ah	200Ah	100Ah	200Ah	100Ah
Size(mm)	325450133	522380137	475450133	471440266	465440195
Weight	21kg	26kg	26kg	48kg	45kg
Color	Optional
Parallel support	Parallel terminals are supported
Output port mode	terminal
Charging way	CC/CP/VP
Charging current	0.2C(standard)
Maximum charging current	Max0.5C @25℃
Discharge way	CC/CP/VP
Discharge current	0.5C
Charge cut-off voltage	14.6V/CELL	14.6V/CELL	29.2V/CELL	29.2V/CELL	54.75V/CELL
Maximum discharge current	Max1C @25℃	Max1C @25℃	Max1C @25℃	Max0.8C @25℃	Max1C @25℃
Discharge cut-off voltage	11.2V	11.2V	22.4V	22.4V	42v
According to	/	/	LCD	LCD	LCD
Communication interface	/	/	/	RS485/RS232	RS485/RS232
Charging operating temperature	charging:0~+50℃
Discharge operating temperature	discharge:-20~+55℃
Warranty	5 years
Applicable scope	hospital, bank data center, base frame type home,enterprise energy storagebackup power supply, wind complementary system,office, military, base station and other uninterrupted energy storage power supply.

Safety is the first priority

The SMS hosts the highest quality LFP cells which is the safest battery chemistry and additional fire-proof features.

If without master control, it support max. 8 parallels for highest 40Kwh battery system; If with standard master controls, it
can be paralleled and serialed with more batteries.

Product Usage

Household solar power supply system

By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;

As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.

Supporting parallel connection of multiple batteries

When your home has a high demand for electricity, we support up to 15 batteries in parallel to provide you with sufficient power support and solve your electricity problems.

When several batteries are stacked together, we will provide you with bracket products to ensure the safe and beautiful use of the product.

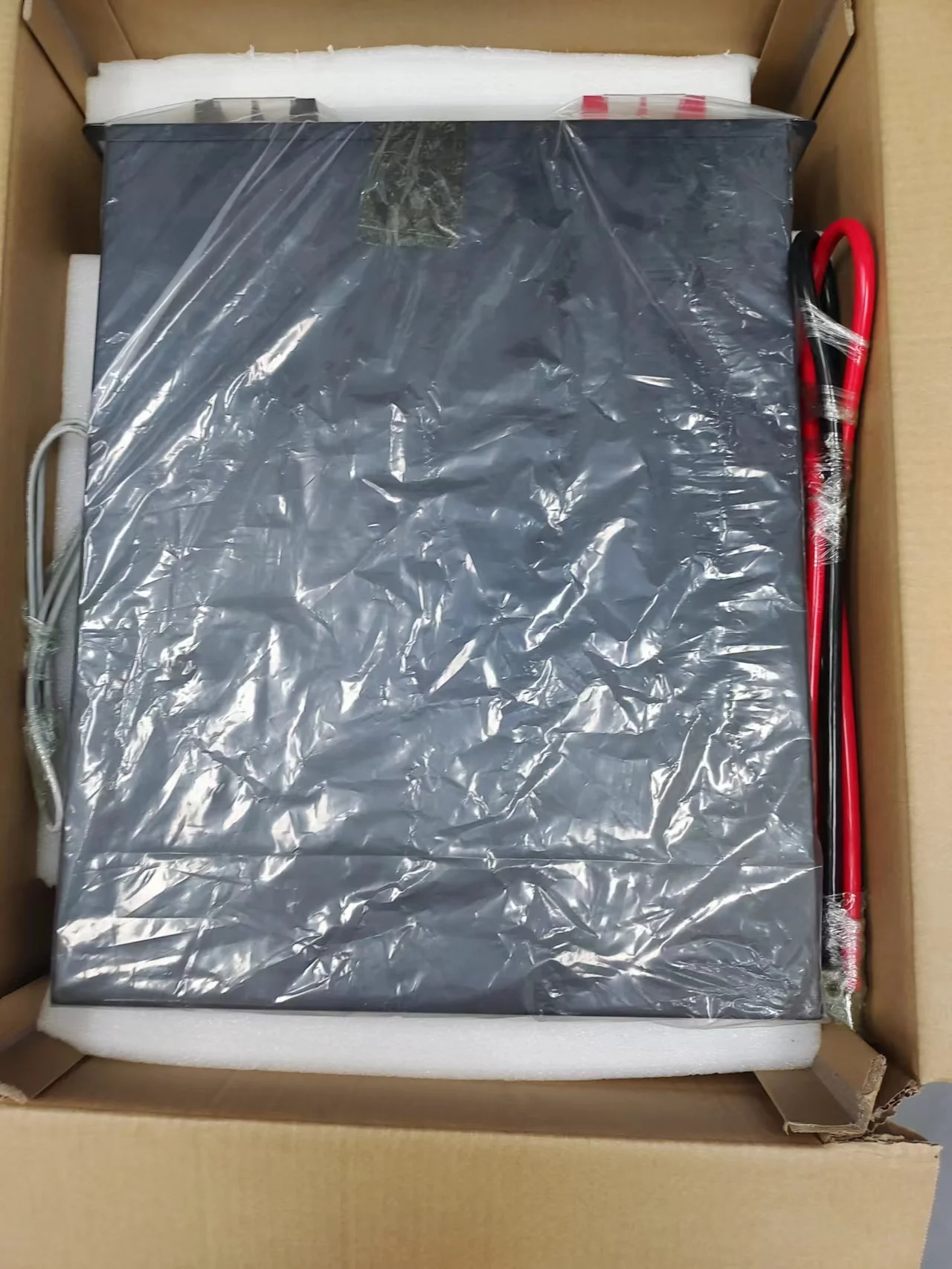

Packing&Shipping

The robotic arm machine is operated automatically, and the product is packaged strictly according to the safety packaging requirements. Finally, a truck is arranged to transport the goods to the port and board the ship in a timely manner.

Company Introduction

Our Services & Strength

Based on the development of smart grid construction,our to providing intelligent automation products for customers in the power industry, with new energy power generation enterprises, power grid companies and industrial and commercial users as the main target customers. Focusing on the research and development, production, sales and service of energy storage products on the power supply side, the power grid side and the user side, deeply involved in the development of green energy and the construction of new power systems, committed to providing customers with high-quality MW energy storage systems, household energy storage systems and overall solutions, is a scientific and technological innovation enterprise integrating research and development, manufacturing, sales and service. We have established a modern quality management system that strictly follows international standards, and our products strictly follow the ISO9001/24001/45001 quality system standards to ensure stable and reliable product quality.

Our company always adheres to the principle of "building first-class brand with strong technical strength, ensuring first-class product quality with advanced management", takes the mission of "continuously creating value for customers and providing development platform for employees", and adheres to the principle of "teamwork, honesty, innovation and service to the society".

Our Aim:dedicated to provide our customers with the best quality service.

FAQ

Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.

Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.

Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.

Q4. Do you have any MOQ limit?
A. Yes, but low MOQ, 1~10pcs sample order is available.

Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger order shipped by air or by sea.

Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quotation. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We produce your order.

Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.

Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a
positive solution.
